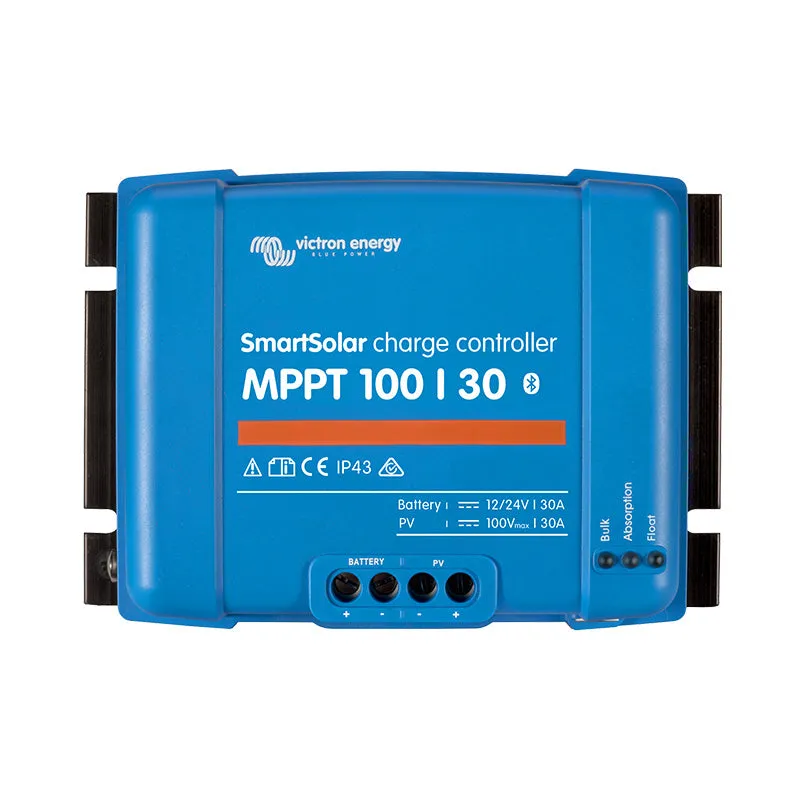

Technical Specifications

• Battery Voltage: 12 V / 24 V (Auto Select).
• Rated Charge Current: 30 A.
• Nominal PV Power (12V): 440 W.
• Nominal PV Power (24V): 880 W.
• Max. PV Short Circuit Current: 35 A.
• Maximum PV Open circuit Voltage: 100 V.
• Peak efficiency: 98 %.
• Self-consumption: 10 mA.
• Charge Voltage 'Absorption': 14,4 V / 28,8 V (Adjustable).
• Charge Voltage 'Float': 13,8 V / 27,6 V (Adjustable).
• Charge Algorithm: Multi-stage Adaptive.
• Temperature Compensation: -16 mV/°C resp.-32 mV/°C.
• Protection: Battery reverse polarity (Fuse) / Output Short circuit/ Over temperature.
• Operating Temperature: -30 °C to 60 °C (full rated output up to 40 °C).
• Humidity: 95% Non-condensing.
• Data Communication: VE. Direct.

Enclosure

• Colour: Blue.
• Power Terminals: 16 mm² / AWG10.
• Protection Category: IP43.
• Weight: 1.3 kg.
• Dimensions: 130 mm x 186 mm x 70 mm.
